Downdraft Vent Lift Repair
Repairing the pop-up vent that rises behind the burners: its lift motor and gears, the limit switches, the blower below and its controls.
Mon–Sat, 8am–8pm
- Moderate cost band
- 5 steps on the visit
- 5 problems it answers
Book a visit
Three short steps, about a minute.
or call (844) 398-3217
Loading appointment form…
The appointment form couldn’t load. Please try again.
What the downdraft vent lift repair
involves.

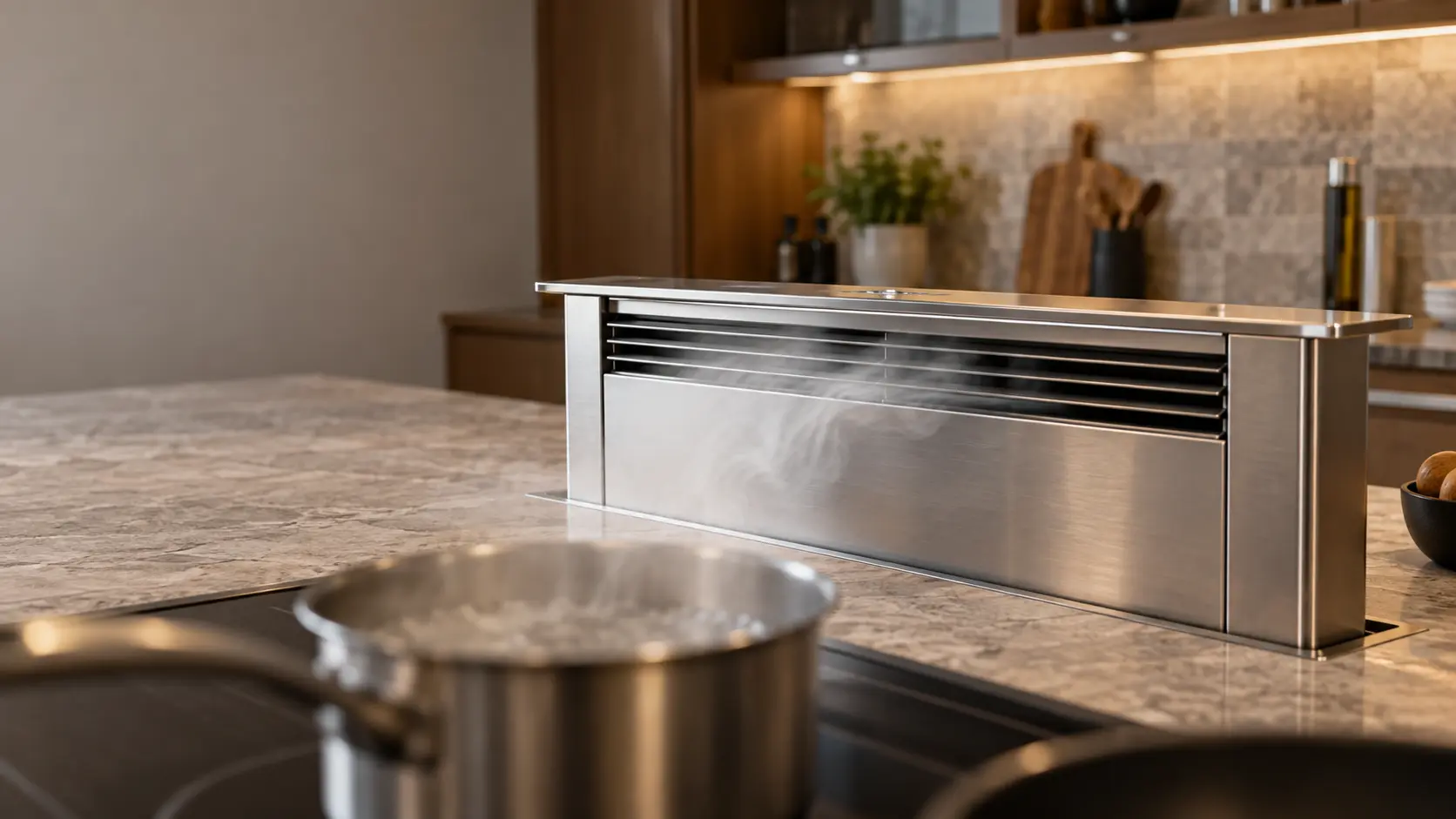

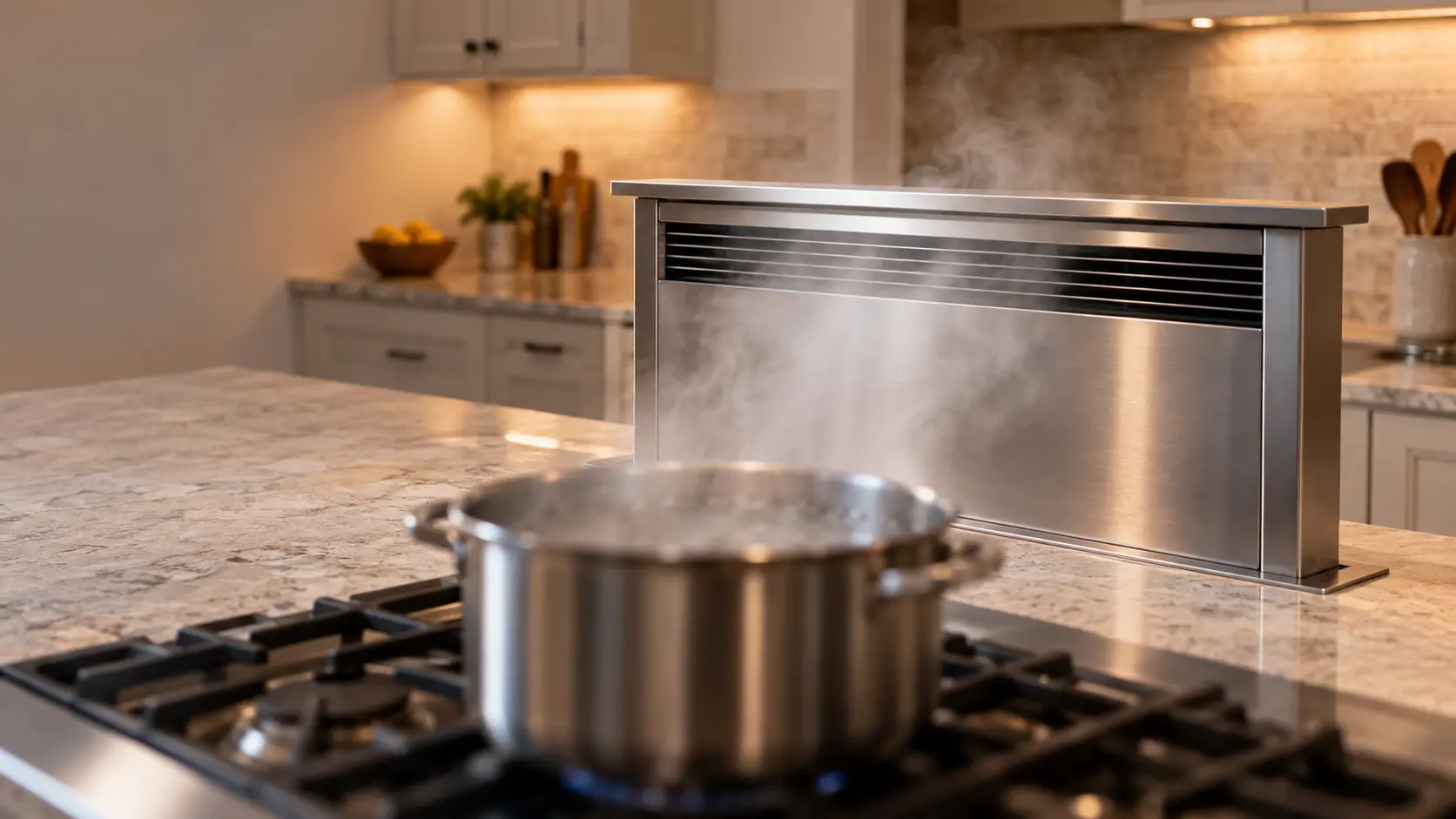

A downdraft vent is the kitchen ventilation of choice where a hanging hood is not wanted, most often on an island. A slim panel rises a foot or so from the counter behind the burners, pulls the steam sideways into its intake and sends it down through a blower in the cabinet below and out through a duct in the floor or the back wall. The rising and falling is done by a small lift motor driving a gear or a screw, with limit switches telling the board when the panel is fully up or fully down. That mechanism is what most often fails. A lift motor weakens and the panel climbs slowly or stalls part way; a stripped gear or a broken drive nut lets the motor whir with no movement; a limit switch fouled by grease leaves the panel stopping short or refusing to retract; and crumbs and spills that fall into the slot jam the track. The blower below the counter wears like any hood fan, and its filter, behind the intake grille, loads with grease. The visit raises and lowers the panel, opens the cabinet below, tests the lift motor, the switches, the board and the blower, and cleans the slot and the track before a part is replaced.
How the visit goesWhat it usually costsModerate · Downdraft lift motor, drive gears, limit switches or its blower
A limit switch or a cleaned track is modest. A lift motor, a drive screw assembly or the blower under the counter costs more, and the cabinet below has to be emptied to reach them.
Answers 5 problemsPop-Up Downdraft Vent Not Rising
Range Hood Fan Not Working at Any Speed · Range Hood Runs but Barely Pulls Smoke · Range Hood Buttons or Keypad Not Responding · Reading a Range Hood Error Code or Blinking Light
Comes up most onIsland range hood
Downdraft vent lift repair,
step by step.
Run the panel up and down several times and each fan speed, showing it rises, holds, draws and retracts cleanly.
Try raising and lowering the panel and run the fan on each speed, noting where the panel stalls or what it does instead.

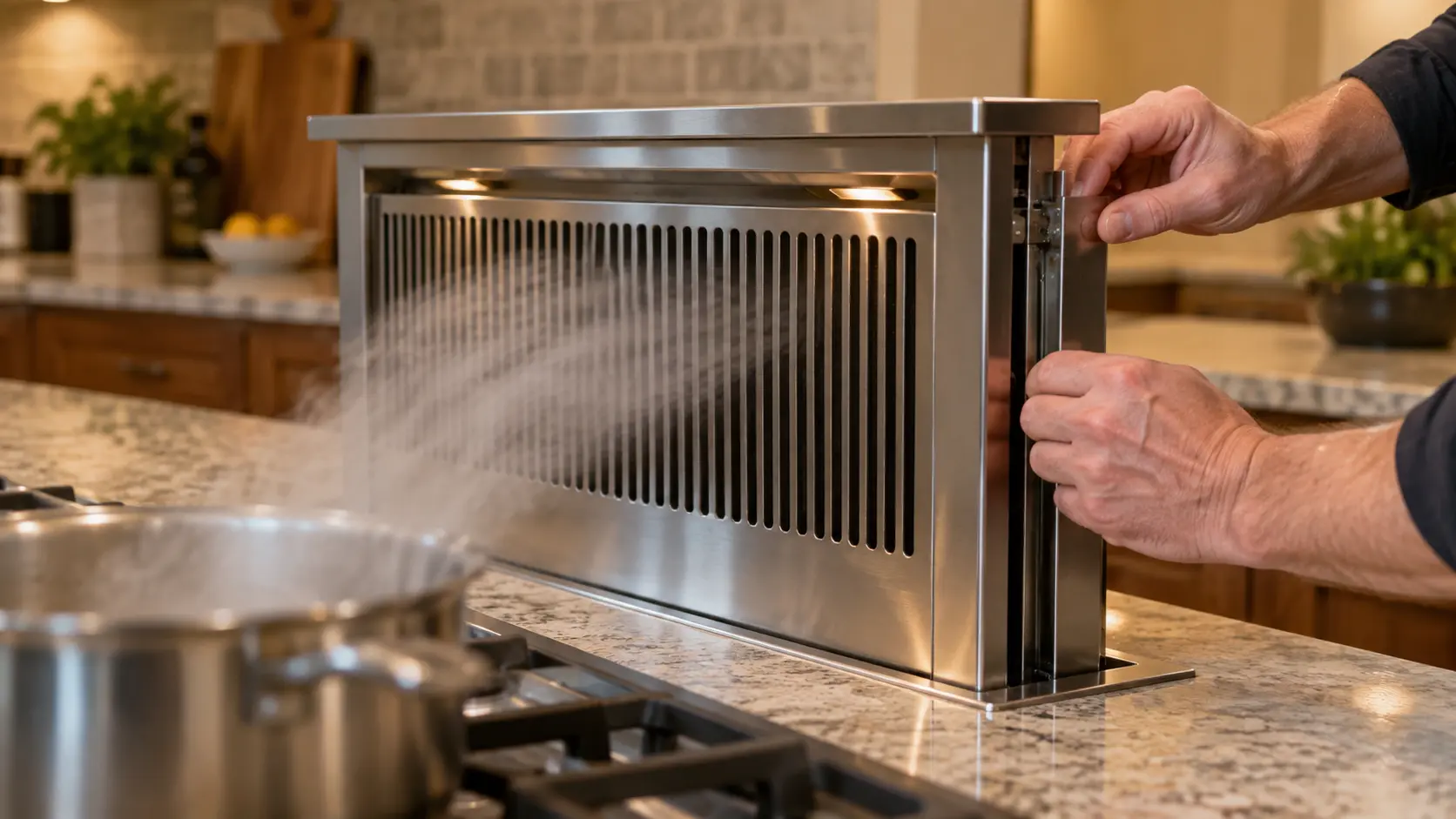

Remove the intake filter, clear the slot and the track of debris and grease, and check the panel's guides.
Cut the power, open the cabinet below and test the lift motor, its gears or drive screw, and the limit switches.
Replace the failed lift part, switch, board or blower, and adjust the stops so the panel seats flush when down.
Run the panel up and down several times and each fan speed, showing it rises, holds, draws and retracts cleanly.
The problems
it answers.
5 of them, from pop-up downdraft vent not rising to reading a range hood error code or blinking light.
All problems
Pop-Up Downdraft Vent Not Rising
6 causes, cheapest first
Before you call
Tell us this when you book
- Whether the panel will not rise, stops part way, rises slowly or will not go back down
- Whether you hear the lift motor whirring, clicking or nothing at all when you press the key
- Whether anything fell into the slot or a spill ran into it before it stopped
- The maker and model, and whether the vent sits behind burners on an island or against a wall
It also answers
Moderate,
on the site's scale.
A limit switch or a cleaned track is modest. A lift motor, a drive screw assembly or the blower under the counter costs more, and the cabinet below has to be emptied to reach them.
Read the full cost guideWhere it
comes up most.
Most bookings: Island range hood.
All range hood typesOften the same visit
The makes
we see it on.
29 makes on this site, and the downdraft vent lift repair on any of them. Each mark opens that make's own page.
All 29 brandsDowndraft vent lift repair,
where we come out.
The kitchen, the climate and the building all change how the downdraft vent lift repair goes. These notes are about that, metro by metro.
All service areasTampa BayFL · 31 areas
Waterfront Tampa Bay kitchens with an island facing the water often use a pop-up downdraft vent to keep the view open, and salt air corrodes its lift rails until the vent rises halfway and stops.
OrlandoFL · 30 areas
Orlando rental guests lean pans against a raised downdraft vent or push it down by hand, and the gear train of its lift motor strips under that force; a vent that clicks without moving has usually lost those gears.
Miami / South FloridaFL · 47 areas
In South Florida condo kitchens with an island cooking surface, a downdraft vent may be the only exhaust the building allowed, and when its lift stalls in humid air the repair cleans the track and tests the motor and the limit switches.
New York MetroNY · 75 areas
In New York lofts with long islands and tall ceilings, a downdraft vent rises behind the burners where no hood could hang, and a vent that will not lift is tested at its motor, its switches and the grease trap below the counter.
HoustonTX · 36 areas
Houston island kitchens with a downdraft vent pull grease down into a cabinet, and in the humid heat that grease settles on the lift rails; the repair degreases the rails and the filter and replaces the lift motor if it has stalled.
ChicagoIL · 50 areas
Chicagoland island remodels often duct a downdraft vent under the floor to an outside wall, and cold air creeping up that duct is a common winter complaint; the repair tests the lift and fits a damper that seals in the cold months.
Los AngelesCA · 95 areas
Los Angeles remodels with an open plan and a view often choose a downdraft vent over a hood, and after a quake its tall lift can bind in the cabinet; the repair realigns the unit and runs the lift through its full travel.
San DiegoCA · 31 areas
In San Diego coastal remodels fine sand carried through open doors reaches a downdraft vent's slides, and a vent that grinds as it rises needs its rails cleaned and its lift motor checked before the gears wear through.
San Francisco Bay AreaCA · 74 areas
Eichler houses around Palo Alto have low beamed ceilings and open plans where a hanging hood would crowd the room, so many cook with a downdraft vent, and a lift that stops halfway is traced to its switches, gears or motor.
Questions about
the downdraft vent lift repair.
My downdraft vent stopped halfway up. Can I push it the rest of the way?
How is a downdraft vent different from a range hood?
Does a downdraft vent have a filter to clean?
Back to your everyday
Ready to book the downdraft vent lift repair?
Have these to hand: whether the panel will not rise, stops part way, rises slowly or will not go back down, whether you hear the lift motor whirring, clicking or nothing at all when you press the key, whether anything fell into the slot or a spill ran into it before it stopped, the maker and model, and whether the vent sits behind burners on an island or against a wall.
